My Bedroom Design

Here is Big Joe's design for his bedroom. He posted it on google sketch up models.

Term 2 Drawing 5

Cover Lesson For DDP

Here is an example of the building

Drawing Four term 2

This is the first choice of Drawing 4. You may complete problem 9, 10 , or 11 on page 139 of the Basic Technical Drawing book. This is problem 9.

Drawing two term two

Selected Student Work From Term One

Color and Shape Project by Zoe

------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

---------Two Point Perspective By Mattia--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Color and Shape Project by Sarah -----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Two Point by Rakiem

End Of Term Final Projects

End of Term Final Projects Due on Friday October 18, 2007

Architecture: Two Point Perspective Drawing Two: Complete a two point perspective drawing of a building(s) or shape(s). Your drawing must have :
a. Light construction lines that go to vanishing points
b. Dark outlines (object lines)
c. Color
d. Shading

DDP: Two Point perspective Drawing Two and a Power Point of the Principles and Elements of Design

BELOW IS AN EXAMPLE OF A TWO POINT PERSPECTIVE THAT COULD MEET THE REQUIREMENTS FOR THE END OF TERM PROJECT

Two Point Perspective #2

Two Point Perspective drawings (Mustafa's work is on the left)

Measuring Activity Two and Two Point Perspective Drawing Two

Measuring Activity 2: Here is a link to a measuring activity. Please review it before going on to the two point perspective links:

http://www.funbrain.com/measure/index.html

Two Point Perspective Activity:

Click on this link to review the basic steps to drawing in Two Point Perspective:
http://www.technologystudent.com/designpro/twopers1.htm

Drawing Activity:

Below are two links to buildings that are cubist designs. Choose one of these and draw a two point perspective of the building. Don't worry if your view is different than the image. Both of these images have horizon lines that are quite low on the page. So if you put your horizon line towards the top of the page , then your view will above the building. Have fun!!!

This a very simple yet beautiful building:
http://www.archidose.org/main.html

This is avery interesting home:
http://www.lesleefarrell.com/properties/206576/lg/33-05-06.jpg

Measurement and scale #1/ Two point perspective

Measuring activity 1
Below is a links to activities that review measurement and scale.

This is a measuring activity:
http://www.rickyspears.com/rulergame/

Two Point Perspective : Today we are going to make a basic two point perspective drawing. Click on the the links below as they give examples of this type of pictorial drawing.

Example 1 of Two Point Perspective Drawing:
http://www.princetonol.com/groups/iad/lessons/middle/images/andi-perspective.jpg

Example 2
http://www.monicagiglio.com/images/Inner-Peace-countour-pencil-sketch-24x18.jpg

Example 3
http://www.drawingcoach.com/image-files/two_point_perspective_build.jpg

Example 4
http://images.google.com/imgres?imgurl=http://www.dadasdesign.com/images/gdcd07.jpg&imgrefurl=http://www.dadasdesign.com/graphic_color.php&h=400&w=550&sz=29&hl=en&start=7&tbnid=7S6iEn6nuAeInM:&tbnh=97&tbnw=133&prev=/images%3Fq%3Dtwo%2Bpoint%2Bperspective%26gbv%3D2%26svnum%3D10%26hl%3Den%26sa%3DG

Example 5
http://www.artgraphica.net/images/wetcanvas/basic-perspective/Demo-for-two-point-shadow.jpg

Elements of Design: Color Lesson # 6

Below are a number of links to various artists and designers who used color and geometry to make interesting images.

1. Click on link 1 and examine the design (artwork)
2. Click on the back button to get back to this Blog
3. Click on the next link.
4. PLease look at all of the images before you begin to design.
5. You may use any drawing instruments that are available. ( rulers, templates, compasses, french curves, etc. )
6. PLan out your drawing with regular pencil
7. Use color pencils to add color.

Links:

Piet Mandrian: http://images.google.com/images?gbv=2&svnum=10&hl=en&sa=X&oi=spell&resnum=0&ct=result&cd=1&q=piet+mondrian&spell=1

Frank Lloyd Wright:

http://www.treadwaygallery.com/ONLINECATALOGS/MAY04/ACweb/0313.jpg

http://www.heartlandhouse.com/docs/fllw_available_canvases.htm

http://www.amazon.com/Frank-Lloyd-Wright-Design-Coasters/dp/B0002FO464

Francine Bradette: (scroll down this page to the geometric modern art collection)

http://www.fradetfineart.com/page18.htm

Kandinsky:

http://www.washburn.k12.il.us/gifs%20and%20jpegs/kndnsk06.jpg

Sketching Form #5

Use the steps to create 4 or 5 different sized cubes and then practice shading them. Click on the image to enlarge. Try placing the light source from different directions in each of your cubes. Next , skecth the cylinder using the crating method and shade it. By shading an image you add depth which gives form.

Sketching #4 Shape and Form

Complete the exercises on the work sheets . You may use these sketches to help you with the activity

Sketching Lines and Shapes # 3

You will find these shapes on pages 29,30, and 31 of your Technical Drawing Textbook. Try to use the crating method. Make your lines very light and then darken object lines in your last step

Sketching lines and shapes number 2

In this exercise, you will practice "crating " parts of an object . You should also become familiar with four lines we will be using in both Architecture and Design and Drawing for Production:

• Construction lines


• Outlines (also called Object lines)


• Center lines


• Dimension lines

Sketching Lines and Shapes

You may use this image to assist you in sketching lines and shapes.
Line terminology: Line weight,straight lines, horizontal lines,vertical lines diagonal lines,hatching lines,continuous lines, broken lines, center lines, sectioning lines, Hidden lines, projection lines, construction lines.

Shape terminology:"Crating" Polygons, irregular polygons, regular polygons, parallelograms, squares, rectangles, circles, hemispheres, hexagons, pentagons, triangles, octagons, two dimensional.

Click on the image to enlarge it so that you can see it better.

Production unit notes

This is the flow chart of the baby barn production process

Small House Design

Design Brief, Specifications, and Constraints



Here are some examples of what the first page of your Small House design project could look like.You need to go back to the Introduction page and determine what are specifications and what are constraints.

Global Communicator

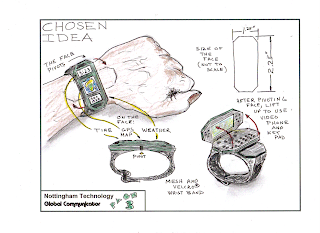

The folio pages below were created to complete week two post two "Global Communicator" assignment.Click on the images to enlarge.

Pages 4 and 5 of the Global communicator were drawn with google sketchup 6. This model is also available for download in google models.Click on the image above.
